Quick Details
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Yuneng
- Model Number: Yuneng8-4
- Output Type: AC Three Phase
- Speed: 1500RPM
- Frequency: 50hz
- Rated Power: 20KW/25KVA
- Rated Voltage: 230/400V
- Rated Current: 36A
- Genset type: open skid type
- Engine brand: DEUTZ
- Engine model: D226B-3D
- Retaed output: 30KW
- No. of cylinder: 3
- Cooling method: Water cooled
- Fuel: diesel
- Certificate: CE/BV/ISO
- Type: Deutz generator
Packaging & Delivery
| Packaging Details: | in plywood case |
|---|---|
| Delivery Detail: | 25 days for Deutz generator |
Specifications
1) 20KW good Yuneng generator
2) powered by Yuneng engine
3) Key/auto starting
4) with 8 hours base fuel tank
5) CE/BV
DEUTZ GENERATOR SPECIFICATION
*Powered by heavy duty industrial diesel engine, Cummins/Deutz/Perkins or China brand engines
*Radiator 40°C max, fans are driven by belt, with safety guard
*12//24V DC start motor and storage battery
*Brushless, self-excited, IP22/23, insulation H alternator
*Absorber to reduce vibration
*Dry type air filter, fuel filter, oil filter
*Main line circuit breaker
*Control system: Key start control panel as standard, digital auto start or ATS system is optional
*8 hours operation base fuel tank
*High efficient muffler to reduce noise
*Ripple flex exhaust pipe, exhaust siphon and flange etc.
*Genset type: open type or soundproof/silent type, or trailer type
*Maintenance and operation manual, quality certificate, etc.
*Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110% and all protection function(over speed stop, high water temperature, low oil pressure, battery
charging fail, emergency stop)
*Certificate: ISO9001:2000, CE (ESC/070119), BV
MAIN TECHNICAL DATA SHEET
|
GENERATOR SET |
|
|
Genset model |
HF20GF |
|
Prime power (KW/KVA) |
20/25 |
|
Standby power (KW/KVA) |
22/27 |
|
Frequency & voltage |
400V, 50HZ |
|
No. of Phase |
3 |
|
Genset type |
Open skid type |
|
Reference Dimension & Weight (W*H, mm)/KGS |
1650*780*1300;780kgs |
|
DIESEL ENGINE |
|
|
Engine brand & Model |
DEUTZ brand, D226B-3D |
|
Rated output |
30KW |
|
Rated Speed |
1500RPM |
|
Engine Type |
In-line, direct injection, four stroke |
|
No. of cylinder |
3 |
|
Bore*stroke |
105*120mm |
|
Aspiration method |
Naturally |
|
Governor |
Mechanical/Electrical |
|
Starting method |
Electric starting |
|
Cooling method |
Forced water cooled |
|
Displacement |
3L |
|
Fuel consumption |
208g/kw.h |
|
Rotation direction of crankshaft |
Counter clockwise(face to flywheel end) |
|
ALTERNATOR |
|
|
Alternator brand & model |
Stamford/Leroy Somer/China reputed brand |
|
Type |
Brushless & self-excited |
|
No. of phase |
3 |
|
Volatage |
400V |
|
Frequency |
50HZ |
|
Power Factor |
0.8 |
|
Insulation Grade |
H |
|
Protection Grade |
IP22/23 |
|
Altitude |
≤1000m |

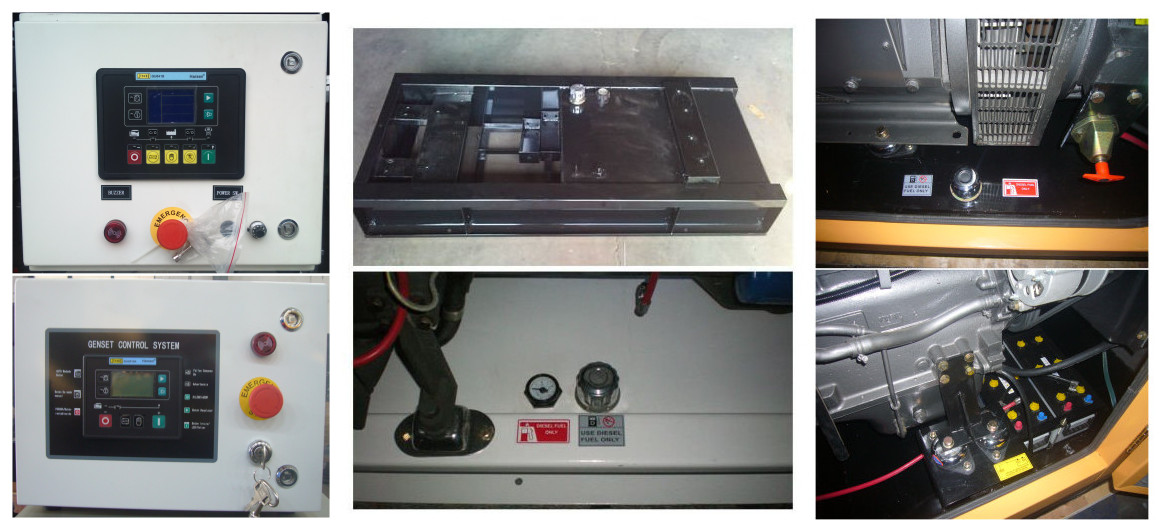

GENERATOR CONFIGRATION

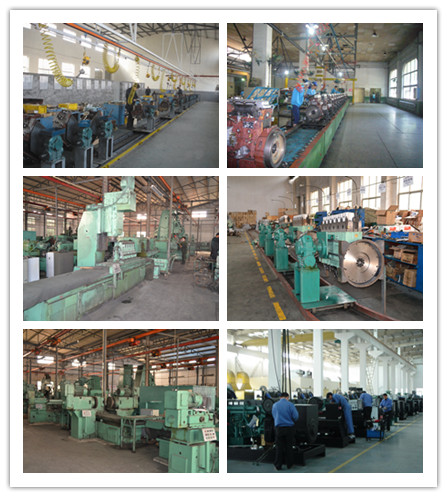

GENERATOR PRODUCTION LINE
GENERATOR SHOW
CUSTOMER VISITING
CERTIFICATES
Guarantee and after-sale service
*One year guarantee for whole machine from date of bill of loading or 1000 hours of running.
*Quality warranty is according to our standard conditions: 12 months from date of bill of lading or 1000 hours of running.
