Quick Details
- Properties: Injection & Puncture Instrument
- Brand Name: YiKon
- Model Number: YiKon20-2
- Place of Origin: China (Mainland)
- Item: Hemodialysis blood tubing set
- Size: 20/30/50ml
- Used: for haemodialysers,haemodiafilters
- Type: All Machine; Hemodialysis Blood Tube Set
- Samples: Can be provided
- OEM: Can be provided
- Shelflife: 2 years
- Features: pyrogen-free,hemolytic reaction-free
- Certification: CE,ISO
Packaging & Delivery
| Packaging Details: | Hemodialysis Blood Tube Set: 6 sets/box; 24 sets/carton;CTN:430*420*335mm. |
|---|---|
| Delivery Detail: | 25-30days |
Specifications
Hemodialysis blood tubing set
1 CE & ISO approved;
2 20ml/30ml/50ml;
3 EO or Gamma sterilization;
Hemodialysis blood tubing set
Features:
1. Sterile, Single use, Non toxic ,pyrogen free and Biocompatible;
2. Transparent PVC tubing;
3. Soft PVC blood drip chamber;
4. Soft PVC pump tubing;
5. Injection sites for intermittent medication;
6. Luer lock priming connector for recirculation;
7. Revolving luer lock connector;
8. Sterilization Method: Ethylene Oxide;
9. Shelf life:5 years;
Instruction of usage:
1. Take set out of package under aseptic conditions.
2. Ensure firm fit of all connections & protective caps.
3. Insert arterial set pump segment in blood pump and tightly connect to other instruments. Then connect arterial line to dialyzer filter inlet
4. Set drip chamber, connections and other segments of venous line in proper position and connect one end of venous line to dialyzer filter outlet and the other end to priming bag.
5. Connect infusion set to bloodline via a10 cm tube placed before pump segment.
6. Fill, vent and flush bloodline set and filter according to manufacturer s instructions and start the flow of dialysis solution.
7. Set fluid level in venous drip chamber so high that no air can enter.
8. After priming, connect bloodline set to patient via fistula needles and start blood circulation in the set.
9. Arterial set is equipped with a thin tube after pump segment for heparin injection into the system
|
Pump segment dimension(ID x OD x L)
|
Φ8xΦ12x350
|
|
Arterial drip chamber(OD)
|
Φ20 mm
|
|
Venous drip chambe(OD)
|
Φ20 mm
|
|
Total volume of blood pathway
|
140ml
|
|
Maximum blood flow rate
|
500ml/min
|
|
Materials
|
PE,ABS,PP,PVC,Silicone,PC
|
|
Sterilization Method
|
Ethylene Oxide Gas
|
|
Packing
|
24 sets/Carton
|
|
Expiry date
|
3 years
|
|
Storage conditions
|
Temperature: 5 °C ~ 35 °C. The maximum humidity should not be more than 80%
|
|
Certification
|
CE,ISO
|

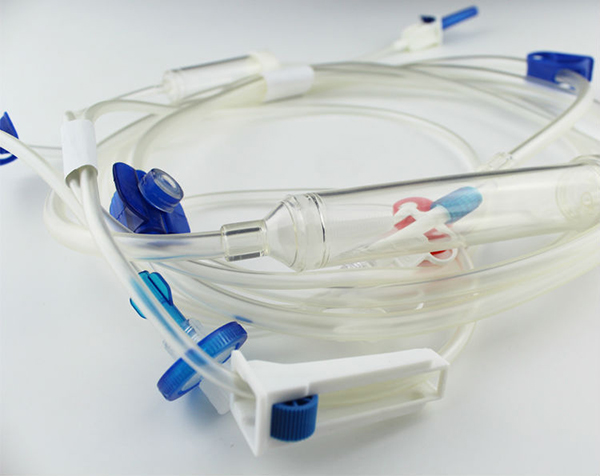

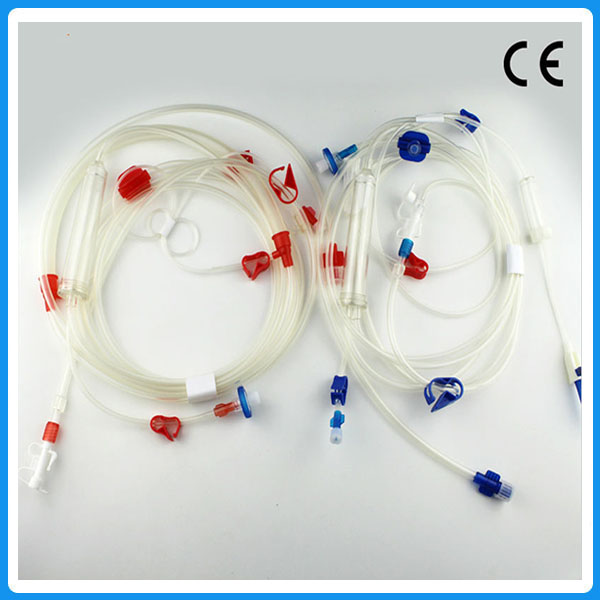

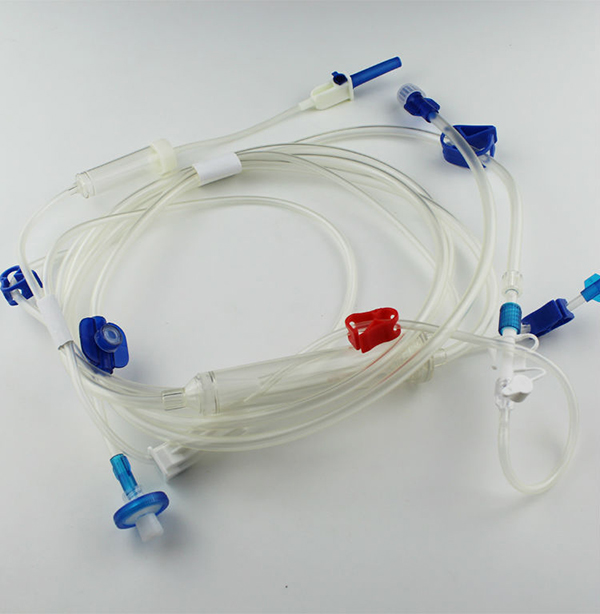

Product pictures:
