Quick Details
- Type: Fencing, Trellis & Gates
- Place of Origin: Hebei, China (Mainland)
- Brand Name: Wire mesh
- Model Number: Wire mesh17-1
- Frame Material: Metal
- Metal Type: Iron
- Pressure Treated Wood Type: Heat Treated
- Frame Finishing: PVC Coated
- Feature: Easily Assembled, Eco Friendly, Rot Proof, Waterproof
- Product name: Outdoor and Indoor Plastic Coated Fence
- wire diameter: 1.2mm-5.0mm
- mesh: 25*100,50*100,50*200,...
- Width: 2m-3m
- Height: 1m-2.5m
- Surface treatment: electro or hot dipped galvanized or PVC coated
- Usage: building,highway,airport,garden, playground,etc
Packaging & Delivery
| Packaging Details: | plastic or paper package on pallet, usually 300-1000 sets per container we can adopt the standard export packing or at customers' special requirement. |
|---|---|
| Delivery Detail: | within 15 days for one container |
Specifications
outdoor and indoor plastic coated fence
1.wire diameter:1.2-5.0mm
2.opening:25-200mm
3.width:2m-3m
4.height:1.0m-2.5m
Outdoor and Indoor Plastic Coated Fence
Material: Low carbon steel wire, steel metal.
Weaving: welding
Treatment: electric galvanizing, hot-dipped galvanizing, PE spraying and PE coating.
Panel:Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly.
Post:we have square column, tubular column, C-shaped column, steel pipe, the peach-shaped column and so on. The finished surface usually is Galvanized and Powder coating, or alternatively, with plastic caps or Roofing rain hat According to different type. Such as buying additional 50cm pass panels height into earth or with bottom based and so on.
Fastenings:The panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking. This also can be designed as the special clients requests.

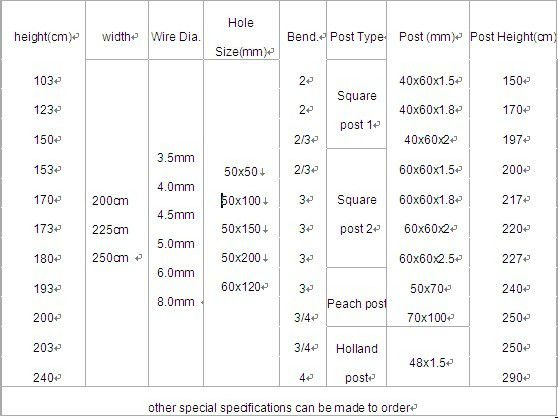

Specifications of plastic coated fence
|
Material: |
low carbon steel wire, Al-Mg alloy wire, stainless steel wire etc |
|
Process: |
weaving and welding; fence length 2m, 2.5m as standard |
|
Height: |
1.8m, 2m, 2.4m, 2.7m, 3.0m, 4.0m, 5.2m |
|
Mesh size: |
75mm x 12.5mm |
|
Horizontal Wires: |
4mm x 12.5mm centres |
|
Vertical Wires: |
4mm x 75mm centres |
|
Post Centres: |
2.5mm |
Usage of plastic coated fence: Wire mesh fence always be used to be Prevention for road, railway, airport, residence district, seaport, garden, playground, school, living area, feeding and husbandry.
